ZHIYUN Rider-M - 3 axle Brushless carry 650 motors degrees displacement Gimbal

ZHIYUN Rider-M - 3 axle Brushless carry 650 motors degrees displacement Gimbal - iMartCity
Regular price $283.00 USD Sale price $269.00 USD
  • Packing List:
  • Gimbal Stabilizer x 1
  • Camera Protection Sticker for Pan Axis Motor x 1
  • Camera Mounting Adapter x 1
  • 18350 Battery Charger x 1
  • 18650B Li-ion Batteries x 4
  • Micro USB Cable x 1
  • AV Output & Charging Cable (4-pin) x 1
  • Camera Charging Cable (3-pin) x 1
  • Extension Rod x 1
  • Storage Bag x 1
  • Company Contact Card
  • Warranty Card
  • User Guide



ZHIYUN Rider-M Gimbal gadgeticloud



Highlights

1. Highly effective design with super light only 180 g (battery excluded).

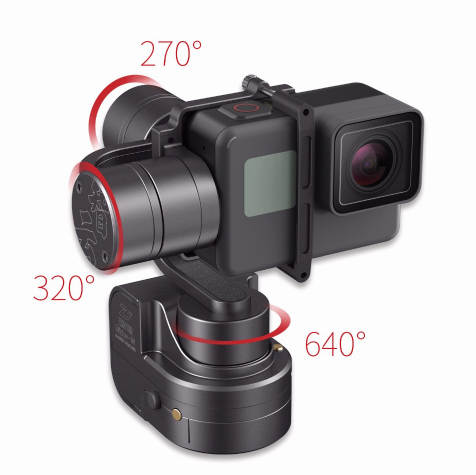

2. 640 ° (± 320 °) rotation along the pan, 315 ° along the slope, and 80 ° along the roll of axes.

3. 32-bit MCUs Run at 4000 Hz.

4. 3.5 mm monitoring of real-time video output.

5. Two batteries for an additional 3 hours of battery life.

6. 1/4 "-20 threaded hole in the bottom.

7. Multiple usage scenarios.

8. You can manage using the iOS / Android application.

9. ZW-BO1 Bluetooth remote control (optional, sold separately).



Tech Specs

Item Min. Standard Max. Remark
Operation Voltage 6.8V 12.6V
Operation Current 50mA 80mA 3000mA
Output Voltage 5V
Output Current 800mA
Following Deviation in Static State ±0.01° ±0.05°
Following Deviation in Motion State ±0.05° ±0.1° ±0.4°
Tilt Angle Range 320°
Roll Angle Range 270°
Pan Angle Range 640°
Controllable Tilt Angle -135° +185°
Controllable Roll Angle -30° +30°
Controllable Pan Angle -320° +320°
Operation Temperature -10°C 25°C 45°C
Battery Runtime 3.5h 4.5h 5.5h
Charging Time 2h
Valid Payload 160g
Compatible Cameras GoPro3/4/5 Camera
Packing List
Item Qty.
Gimbal Stabilizer 1
Camera Protection Sticker for Pan Axis Motor 1
Camera Mounting Adapter 1
18350 Battery Charger 1
18350 Li-ion Batteries 4
Micro USB Cable 1
AV Output & Charging Cable (4-pin) 1
Camera Charging Cable (3-pin) 1
Extension Rod 1
Storage Bag 1
User Guide 1
Warranty Card 1
Company Contact Card 1
Packing Specifications
Item Dim./Weight Remark
Product Dimension 78*73*109mm W*D*H
Package Size 246*198*61mm L*W*H
Carton Size (Dedicated) 450*360*300mm L*W*H
Product Net Weight 180g/Unit
Gross Weight (including package) 1030g/Unit
Packing Weight 11.5kg/Carton 10 Units/Carton
  • Warranty6-months warranty
  • World Wide ShippingWe Ship World Wide
  • Customer ServiceEmail/FB/Whatsapp/Phone

  • Packing List:
  • Gimbal Stabilizer x 1
  • Camera Protection Sticker for Pan Axis Motor x 1
  • Camera Mounting Adapter x 1
  • 18350 Battery Charger x 1
  • 18650B Li-ion Batteries x 4
  • Micro USB Cable x 1
  • AV Output & Charging Cable (4-pin) x 1
  • Camera Charging Cable (3-pin) x 1
  • Extension Rod x 1
  • Storage Bag x 1
  • Company Contact Card
  • Warranty Card
  • User Guide



ZHIYUN Rider-M Gimbal gadgeticloud



Highlights

1. Highly effective design with super light only 180 g (battery excluded).

2. 640 ° (± 320 °) rotation along the pan, 315 ° along the slope, and 80 ° along the roll of axes.

3. 32-bit MCUs Run at 4000 Hz.

4. 3.5 mm monitoring of real-time video output.

5. Two batteries for an additional 3 hours of battery life.

6. 1/4 "-20 threaded hole in the bottom.

7. Multiple usage scenarios.

8. You can manage using the iOS / Android application.

9. ZW-BO1 Bluetooth remote control (optional, sold separately).



Tech Specs

Item Min. Standard Max. Remark
Operation Voltage 6.8V 12.6V
Operation Current 50mA 80mA 3000mA
Output Voltage 5V
Output Current 800mA
Following Deviation in Static State ±0.01° ±0.05°
Following Deviation in Motion State ±0.05° ±0.1° ±0.4°
Tilt Angle Range 320°
Roll Angle Range 270°
Pan Angle Range 640°
Controllable Tilt Angle -135° +185°
Controllable Roll Angle -30° +30°
Controllable Pan Angle -320° +320°
Operation Temperature -10°C 25°C 45°C
Battery Runtime 3.5h 4.5h 5.5h
Charging Time 2h
Valid Payload 160g
Compatible Cameras GoPro3/4/5 Camera
Packing List
Item Qty.
Gimbal Stabilizer 1
Camera Protection Sticker for Pan Axis Motor 1
Camera Mounting Adapter 1
18350 Battery Charger 1
18350 Li-ion Batteries 4
Micro USB Cable 1
AV Output & Charging Cable (4-pin) 1
Camera Charging Cable (3-pin) 1
Extension Rod 1
Storage Bag 1
User Guide 1
Warranty Card 1
Company Contact Card 1
Packing Specifications
Item Dim./Weight Remark
Product Dimension 78*73*109mm W*D*H
Package Size 246*198*61mm L*W*H
Carton Size (Dedicated) 450*360*300mm L*W*H
Product Net Weight 180g/Unit
Gross Weight (including package) 1030g/Unit
Packing Weight 11.5kg/Carton 10 Units/Carton
