Drone & Accessories
❖ iMartCity offers powerful drones and accessories ❖
Drones help us take stunning up-sky videos and photos. At iMartCity, you can find different types of drones and accessories. DJI drones are mini and designed with infrared sensing system. They are what you need for filming and taking shots from the sky.

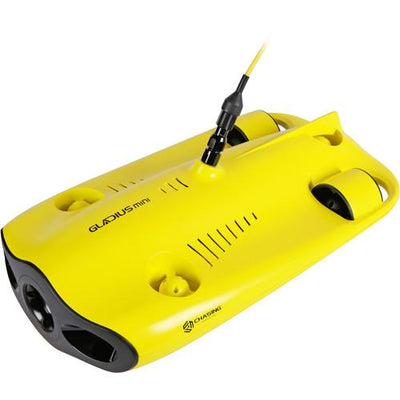

GLADIUS MINI - The world's first smart 5 propellers micro underwater drone
In order to obtain the best performance underwater, the GLADIUS MINI underwater drone uses a three vertical propeller design combined with intelligent control algorithms to ensure the stability of the submarine drone in all directions while the two propellers propel GLADIUS MINI at a speed of up to 4 knots.
Perfect Camera for Underwater Drone
The GLADIUS MINI underwater drone is also equipped with an adjustable tilt locking device so that the camera on the submarine drone can shoot at different shooting angles. The camera on the GLADIUS MINI underwater drone is designed according to high specifications. It has 12 million pixels; CMOS size is 1/2.3 inches; when the aperture is fully opened, the lens is at F/3.0. The GLADIUS MINI underwater drone can shoot ultra-high-definition 4K video clips. The image restoration algorithm in the MINI APP repairs the color distortion, making the picture clearer, brighter and cleaner.
Immersive Underwater VR
The GLADIUS MINI Submarine Drone supports Virtual Reality equipment to provide a stunning underwater VR experience without getting wet.
One Touch Depth-Lock Mode
Intelligent Control algorithms and one-touch Depth-Lock Mode help you navigate freely and the submarine drone would be able to hover at depth to find and capture exactly what you want.
One-Click Online Sharing
You will be able to share your underwater discoveries and explorations with one-touch posting and live-streaming via social media.
Share Video in Real-Time
The GLADIUS MINI Submarine Drone enables users to view and share live media on up to 3 wireless devices, PLUS big screen TV/monitor (with HDMI port).
Small, Portable, and Easy to Carry
With the Chasing Mini backpack, it's easy to carry everything needed for a dive in comfort.
Simple, Precision, Game-Like Control
What's in the pack?
Dimension (inches): 15.1*8.8*5.4
Weight (kg): 2.5
Maximum Depth: 330 feet (100 meters)
Maximum Speed: 4 knots (2 m/s)
Runtime: 2 hours (forward at low speed) / 1.5 hours (forward at medium speed) / 40 mins (forward at high speed)
Battery Cycle: 300+ times
Tether Length (ft): 164/330
Specification (Camera)
CMOS: 1/2.3 inch
Lens: f/3.0
Focus: 4mm
ISO Range: 100 - 3200
FOV: 95°
Maximum Photo Pixel: 12M (4000*3000)
Picture Type: JEPG / DNG
Video Resolution: FHD 1920*1080 30FPS / FHD 1920*1080 60FPS / 1920*1080 120FPS / FHD 3840*2160 (4K) 30 FPS
Video Birats: 60M
Video Type: MP4
Specification (Remote Controller)
Working Frequency: 2.4GHz (Bluetooth)
Working Temperature: -10℃~45℃
Wi-Fi Distance: <10 m
Specification (Wi-Fi Connect & Winder)
Weight (with no tether): <1.5 kg
Battery: 28.8Wh (2600 mAh)
Maximum Runtime: ≥8 hours (Depends on working method)
Battery Cycle: >300 times
HDMI Output: Yes
TF Card Recording: Yes
Wi-Fi Range: <10 m
Break Strength: 100 kg (980 N)
Specification (LED)
Brightness: 2 x 1200 Lumens
Colour Temperature: 4000K - 5000K
CRI: 80
Maximum Power: 10W
Dimming: Manual Dimming
Specification (Sensor)
IMU: 3 axis gyro / Accelerometer / Compass
Depth Sensor: < +/- 0.5 m
Temperature Sensor: +/- 2℃
Specification (Charger)
Charger: 12.6V 3A
Drone Charging Time: 1.5 hour
Base Station Charging Time: 1 hour
FAQ
What is the maximum range of GLADIUS MINI?
Maximum depth: 100m Maximum speed: 4knots (2m/s)
Is it possible to move GLADIUS MINI sideways at fixed depth and heading?
It supports movement at a fixed depth.
Does the drone automatically stabilize at the desired depth?
The 5-thruster design offers various depth control modes to maintain depths and stability. Selected modes offer more or less depth control while maintaining precision stability.
How do I know when the GLADIUS MINI is running out of power?
The controller of the GLADIUS MINI is equipped with a Battery Power Indicator which is a red light warning signal starting at 25% battery remaining
Do the thrusters work independently such that I can pitch the nose of the drone up and down?
The thrusters work independently, and you can pitch the nose of the drone up and down. Gladius MINI supports maximum plus or minus 45-degree pitch angle.
How to connect your phone to your drone?
Turn on the base station, then connect to the ‘Gladius 5G WiFi’ by your phone. The password is 12345678.
Does the Wi-FI Controller float underwater?
The WI-FI controller does not have a waterproof rating. Do not put the controller in the water.
How long does it take to charge the drone battery, and how long does a full charge last?
GLADIUS MINI is equipped with a 3A charger. It takes 1.5 hours to charge the drone battery. This full charge will last for about 2 hours.
Do I have to control GLADIUS MINI by APP? Are there requirements for the phone model?
Yes, the APP controls the GLADIUS MINI. iOS and Android are both available.
What are the main features?
The size of the mini is 385*226*138mm and the weight is less than 2.5KG. The total weight does not exceed 4KG.
Does the lens have a protective collar to prevent scratching if you bump coral or a prop?
The lens has a certain strength; however, we suggest customers avoid collisions.
What's the record time on the onboard internal storage?
It depends on the capacity of the SD card and the resolution of the video.
What are the Video & Photo formats for GLADIUS MINI?
MP4 and JPEG/PNG

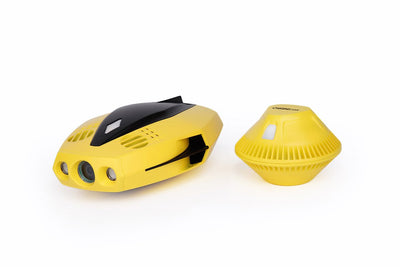

Chasing - DORY Underwater Drone with Full HD Camera - Daily underwater experience
Chasing Dolly's underwater drone is smaller than a piece of paper. DORY Underwater Drone can be put in a shoulder bag and can be easily carried where you want to use it.
Compared with our previous UAV GLADIUS MINI underwater UAV, the weight of the submarine UAV is reduced by 56% and the volume is reduced by 65%.
Get The Perfect Angle
The submarine drone is equipped with a 45-degree tilt lock which lets you smoothly scan the ocean floor or peer up at the crystal waters above for the best angle.
One Hour of Exploring
The DORY underwater drone is designed with a 4800 mAh battery, which can provide 1 hour of running time after being fully charged. Only the submarine drone needs to be charged-unlike other drones, every component needs to be charged.
Lock in Your Level
For Chasing DORY Underwater Drone, there is a depth locking device that allows you to keep the submarine drone at the precise depth you choose without being thrown around by the submarine drone.
High Precision Positioning
GPS Wi-Fi Buoy provides precise readings, so you always know your whereabouts. With Anti-lost Warning, you will never get disconnected with your submarine drone.
Vivid photos in all conditions
The 1080p Full HD camera of DORY Underwater Drone breaks through the low-light visibility of the f/1.6 lens. The CMOS of the camera in the submarine drone is 1/2.9 inch, and the ISO range is from 100 to 3200.
Customize Visual Effects
Customize visual effects with 19 image filters and simple video editing.
Share on Social Media
Quickly and easily share footage on Facebook, Instagram, and more, plus even stream live!
Ideal lighting for exploration
The two 250-lumen lights on the submarine drone illuminate the water without overwhelming the eyes or sea dwellers.
Restore True Colours Underwater
The smart colour-restore algorithm keeps photos vivid in all conditions.
Intuitive Controls, Plug, Plunge & Play
With DORY Underwater Drone, no complicated remote needed - just an intuitive app right on your mobile device. Control everything from diving to tilting to maintaining a specific depth all with the convenience of your phone.
Innovative Co-Play Mode
DORY Underwater Drone Duo Device Co-play puts one person in control of the drone and one on the camera and video for maximum fun.
Hydrodynamic Design
DORY Underwater Drone's hydrodynamic design packs in the most important features in a sleek, compact body, Set up within seconds.
What's in the pack?
Specifications (DORY Underwater Drone)
Size (mm): 147*188*92
Weight (kg): 1.1
Maximum Depth (m): 15
Maximum Speed (knots): 1.5kn
Runtime: 60 mins
Battery Cycle Life: ≥ 300 times
Specification (Camera)
CMOS: 1/2.9 inch
Lens: f/1.6
Focus: 4mm
ISO Range: 100-3200
FOV: 100°
Maximum Resolution: 2M (1920*1080)
Format: JEPG
Video: Full HD - 1920*1080 - 30FPS
Video Stream: 4M
Video Format: MP4
Specification (Charger)
Power: 12.6V 1.8A
Charging Time: 2 hours
Specification (LED)
Brightness: 2*250 Lumens
Colour Temperature 4000K - 5000K
CRI: 80
Specification (BUOY)
Size (mm): 130*130*88
Weight (g): 160
Storage: 16G
Maximum WiFi Distance (m): 15
Specification (Sensor)
IMU: 3 axis gyro / Accelerometer / Compass
Depth Sensor: ≤±0.5m
Temperature Sensor: ≤±2℃
- Flight Time: 27 mins
- Speed: 65 km/h
- Video Resolution: 4K
- Control Range: 7 km
- Gimbal: 3-axis
- Camera Resoluton: 12 MP

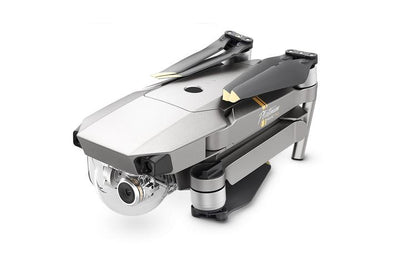

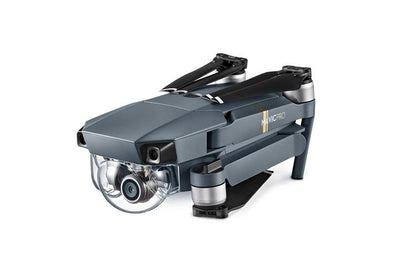

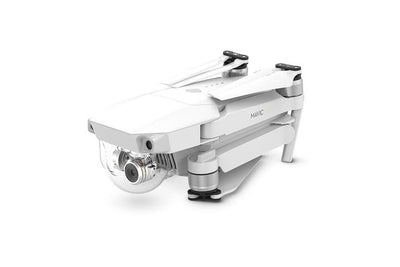

The DJI Mavic Pro is a small yet powerful drone that turns the sky into your creative canvas easily and without worry,helping you make every moment an aerial moment. Its compact size hides a high degree of complexity that makes it one of DJI’s mostsophisticated flying cameras ever. 24 high-performance computing cores, an all-new transmission system with a 4.3mi (7km) *range,5 vision sensors, and a 4K camera stabilized by a 3-axis mechanical gimbal, are at your commandwith just a push of your thumb or a tap of your finger.*Unobstructed, free of interference, when FCC compliant.
FLY FURTHER
Inside the Mavic’s pocket-sized remote controller is DJI’s brand new OcuSync transmission technology, with a range of 4.3mi (7km)*, HD 720p long range and Full HD 1080p short range video streaming.
*Unobstructed, free of interference, when FCC compliant.
NO BUMPS AND SCRAPES
An unprotected drone could hit obstacles during long distance flight or when descending from an inadequate height in Return to Home mode. The Mavic uses FlightAutonomy technology to sense obstacles up to 49ft (15m) away and allows the Mavic to bypass them or brake to hover, reducing accidents.
PRECISION HOVER
Satellite positioning can only help a drone hover in an unobstructed outdoor area free of interference. Without satellites, the drone will not be able to position and become susceptible to drifting. However, with forward and downward vision sensors, the Mavic can hover precisely indoors or in places without GPS.
STAY FLYING LONGER
The Mavic is only 1/6th the size of the Phantom 4 but this reduction in size doesn't mean a reduction in flight time. The Mavic actually flies much longer than you would expect from its compact size. It is capable of reaching an absolute maximum flight time of 27 minutes and a maximum distance of 8mi (13km) due to its powerful, high-efficiency motors.
4K ULTRA HD VIDEO
Mavic supports 4K video at 30fps. No Electronic Image Stabilization is used, ensuring all footage is 4K. We have created a miniaturized, ultra-precise 3-axis gimbal for the Mavic, capable of stabilizing the camera even during high-speed motion for smooth video and sharp photos.
PHOTOS WITH ALTITUDE
Everyone loves a good photo. Whether you just want to take a snap or are building up your portfolio, the Mavic’s 12-megapixel camera with Adobe DNG RAW support is ready to shoot.
SHOOT LIKE A PRO. AUTOMATICALLY.
You don’t need a film crew when you fly the Mavic because all you need is ActiveTrack. Just tell it who to track and it handles the rest, making you shoot like a pro.
WAVE FOR YOUR DRONIE
With the Mavic in the air pointing at you, a gesture is all it takes to snap a photo. Get selfies like you’ve never seen before with Mavic’s Gesture Mode.
FINELY TUNED CONTROL
If you are lining up a photo, or even flying indoors, you don’t want to be flying too fast. Flip on Tripod Mode and every move the Mavic makes becomes slow and precise.
FLY BY PHONE
Maybe all you want to do is grab a quick dronie, set up tracking to shoot a friend, or even just head skywards for a quick flight. All you need is your phone.
TAPFLY
Beginner pilots often have trouble flying in a straight line because they aren’t familiar with joysticks, which then makes shooting smooth video tricky. TapFly means you can just tap where you want to go and the Mavic will fly smoothly in that direction, so you can focus on controlling the gimbal and capturing photos and video. Flying really can be that easy.
AT YOUR COMMAND
The Mavic acts on your every instruction almost instantly. Whether you want to shoot a slow, graceful flowing shot, or get your blood pumping at 40mph (65kph) speeds in Sport Mode.
SEE THE WORLD LIKE A BIRD
See the world through the eyes of a bird when you wear the super high-quality wireless DJI Goggles.
SHOOT. EDIT. SHARE.
You have shot the most incredible scene imaginable. Now you can edit it with just a few taps in the DJI GO 4 Editor, and share it instantly for all the world to see.
DUAL REMOTE CONTROLLER MODE
Both Master and Slave remote controllers can control the aircraft and gimbal, but the master remote controller has priority. A more experienced pilot can use the Master remote controller to override a less experienced pilot for better safety. Dual Remote Controller Mode makes it fun and easy to fly the Mavic and film aerial footage collaboratively.
TWO SETS OF SENSORS. TWICE AS RELIABLE
On a drone, the most likely source of a problem is a sensor not working exactly as it should. This is why the Mavic has two of each key sensor. If one goes wrong, the other kicks in to take its place.
LEVEL HEADED
Stay at the same level height above the ground automatically. Don’t worry about flying too low, the Mavic will keep you at just the right height over uneven terrain.

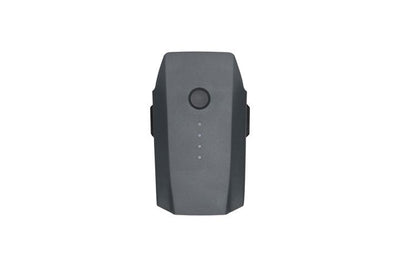

SAFER, SMARTER BATTERIES
The Mavic’s Intelligent Flight Batteries give it a flight time of up to 27 minutes, allowing you to check battery level and status in real-time during a flight through the DJI GO 4 app. It also calculates remaining flight time, helping pilots fly more safely.
A GLANCE IS ALL YOU NEED
Through the DJI GO 4 app you see everything the camera sees, as well as everything you need to know about your Mavic, from battery life to where it is, to where it is heading and much more.
Highlights
Portable yet powerful, the Mavic Pro is your personal drone, ready to go with you everywhere.

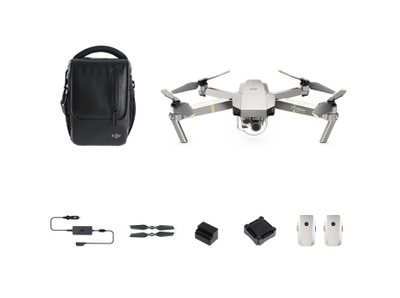

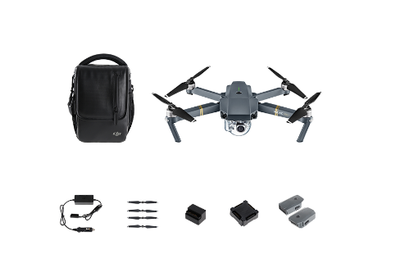

In the Box
AIRCRAFT
| Folded | H83mm x W83mm x L198mm |
|---|---|
| Diagonal Size (Propellers Excluded) | 335 mm |
| Weight (Battery & Propellers Included) | 1.62 lbs (734 g) (exclude gimbal cover) 1.64 lbs (743 g) (include gimbal cover) |
| Max Ascent Speed | 16.4 ft/s (5 m/s) in Sport mode |
| Max Descent Speed | 9.8 ft/s (3 m/s) |
| Max Speed | 40 mph (65 kph) in Sport mode without wind |
| Max Service Ceiling Above Sea Level | 16404 feet (5000 m) |
| Max Flight Time | 27 minutes (no wind at a consistent 15.5 mph (25 kph)) |
| Max Hovering Time | 24 minutes (no wind) |
| Overall Flight Time | 21 minutes ( In normal flight, 15% remaining battery level ) |
| Max Total Travel Distance (One Full Battery, No Wind) | 8 mi (13 km, no wind) |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) |
| Satellite Positioning Systems | GPS / GLONASS |
| Hover Accuracy Range | Vertical: +/- 0.1 m (when Vision Positioning is active) or +/-0.5 m Horizontal: +/- 0.3 m (when Vision Positioning is active) or +/-1.5 m |
| Operating Frequency | FCC: 2.4-2.4835GHz; 5.150-5.250 GHz; 5.725-5.850 GHz CE: 2.4-2.4835GHz; 5.725-5.850 GHz SRRC： 2.4-2.4835 GHz;5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.4GHz FCC:<=26 dBm; CE: <=20 dBm; SRRC:<=20 dBm; MIC:<=18 dBm 5.2 GHz FCC:<=23 dBm 5.8 GHz FCC:<=23 dBm; CE <=13 dBm; SRRC: <=23 dBm; MIC: - |
REMOTE CONTROLLER
| Operating Frequency | 2.4 GHz to 2.483 GHz |
|---|---|
| Max Transmission Distance | FCC Compliant: 4.3 mi (7 km); CE Compliant: 2.5 mi (4 km) SRRC Compliant: 2.5mi (4 km) MIC Compliant: 2.5 mi (4 km) (Unobstructed, free of interference) |
| Operating Temperature Range | 32° to 104° F ( 0° to 40° C ) |
| Battery | 2970mAh |
| Transmitter Power (EIRP) | FCC：<=26 dBm CE：<=20 dBm SRRC: <=20 dBm MIC: <=18 dBm |
| Operating Current/Voltage | 950mA @ 3.7V |
| Supported Mobile Device Size | Thickness Supported:6.5-8.5mm Max length: 160mm Supported USB port types: Lightning, Micro USB(Type-B),USB(Type-C)™ |
GIMBAL
| Controllable Range | Pitch: -90° to +30° Roll: 0° or 90° (Horizontally and vertically) |
|---|---|
| Stabilization | 3-axis (pitch, roll, yaw) |
VISION SYSTEM
| Vision System | Forward Vision System Downward Vision System |
|---|---|
| Obstacle Sensory Range | Precision measurement range: 2 ft (0.7 m) to 49 ft (15 m) Detectable range: 49 ft (15 m) to 98 ft (30 m) |
| Operating Environment | Surface with clear pattern and adequate lighting (lux > 15) |
| Velocity Range | ≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 1 - 43 feet (0.3 - 13 m) |
| Operating Range | 1 - 43 feet (0.3 - 13 m) |
APP / LIVE VIEW
| Mobile App | DJI GO 4 |
|---|---|
| Live View Quality | 720p@30fps, 1080p@30fps（Remote Controller） 720p@30fps(Wi-Fi) 720p@60fps, 1080p@30fps（DJI Goggles） |
| Latency | 160-170ms (depending on conditions and mobile device) |
| Required Operating Systems |
|
CAMERA
| Sensor | 1/2.3” (CMOS), Effective pixels:12.35 M (Total pixels:12.71M) |
|---|---|
| Lens | FOV 78.8° 28 mm (35 mm format equivalent) f/2.2 Distortion < 1.5% Focus from 0.5 m to ∞ |
| ISO Range | video: 100-3200 photo: 100-1600 |
| Electronic Shutter Speed | 8s -1/8000 s |
| Image Size | 4000×3000 |
| Still Photography Modes | Single shot Burst shooting: 3/5/7 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval |
| Video Recording Modes | C4K: 4096×2160 24p 4K: 3840×2160 24/25/30p 2.7K: 2720x1530 24/25/30p FHD: 1920×1080 24/25/30/48/50/60/96p HD: 1280×720 24/25/30/48/50/60/120p |
| Max Video Bitrate | 60 Mbps |
| Supported File Systems | FAT32 ( ≤ 32 GB ); exFAT ( > 32 GB ) |
| Photo | JPEG, DNG |
| Video | MP4, MOV (MPEG-4 AVC/H.264) |
| Supported SD Cards | Micro SD™ Max capacity: 64 GB. Class 10 or UHS-1 rating required |
| Operating Temperature Range | 32° to 104° F ( 0° to 40° C ) |
WI-FI
| Operating Frequency | 2.4G/5G |
|---|---|
| Max Transmission Distance | 80 m(Distance), 50m(Height) (Unobstructed, free of interference) |
| Max Speed | 14 km/h (9 mph) |
| Max Ascent Speed | 6.6 ft/s(2 m/s) |
| Max Descent Speed | 3.3 ft/s(1 m/s) |
CHARGER
| Voltage | 13.05 V |
|---|---|
| Rated Power | 50 W |
INTELLIGENT FLIGHT BATTERY
| Capacity | 3830 mAh |
|---|---|
| Voltage | 11.4 V |
| Battery Type | LiPo 3S |
| Energy | 43.6 Wh |
| Net Weight | Approx.0.5 lbs(240 g) |
| Charging Temperature Range | 41° to 104° F ( 5° to 40° C ) |
- Flight Time: 30 mins
- Noise Reduction: 4dB
- Video Resolution: 4K
- Control Range: 7 km
- Gimbal: 3-axis
- Camera Resoluton: 12 MP
MAVICPROPLATINUM
The Mavic Pro Platinum features a sleek design and compact body that is both powerful and alluring. A new and improved 30-minute flight time coupled with 60% noise power reduction makes the Mavic Pro Platinum DJI’s best portable drone yet.
Enhanced Endurance, Quieter Flight
Aircraft noise has been reduced by up to 4dB* (60% noise power) and extended flight time to 30 minutes with new FOC sinusoidal driver ESCs and 8331 propellers for a quieter, more enjoyable flight experience.
With a brand-new aerodynamic design, the 8331 propellers give the Mavic Pro Platinum an impressive noise control performance, and the new FOC ESC drivers offer sinusoidal current for increased stability.
Highlights
With enhanced endurance and quieter flight, the Mavic Pro Platinum is DJI's best portable drone yet.
In the Box
AIRCRAFT
| Folded | H83mm x W83mm x L198mm |
|---|---|
| Diagonal Size (Propellers Excluded) | 335 mm |
| Weight (Battery & Propellers Included) | 1.62 lbs (734 g) (exclude gimbal cover) 1.64 lbs (743 g) (include gimbal cover) |
| Max Ascent Speed | 16.4 ft/s (5 m/s) in Sport mode |
| Max Descent Speed | 9.8 ft/s (3 m/s) |
| Max Speed | 40 mph (65 kph) in Sport mode without wind |
| Max Service Ceiling Above Sea Level | 16404 feet (5000 m) |
| Max Flight Time | 30 minutes (no wind at a consistent 15.5 mph (25 kph)) |
| Max Hovering Time | 27 minutes (no wind) |
| ESC(Electronic Speed Controller) | FOC |
| Max Total Travel Distance (One Full Battery, No Wind) | 9.3 mi (15 km, no wind) |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) |
| Satellite Positioning Systems | GPS / GLONASS |
| Hover Accuracy Range | Vertical: +/- 0.1 m (when Vision Positioning is active) or +/-0.5 m Horizontal: +/- 0.3 m (when Vision Positioning is active) or +/-1.5 m |
| Operating Frequency | FCC: 2.4-2.4835GHz; 5.150-5.250 GHz; 5.725-5.850 GHz CE: 2.4-2.4835GHz; 5.725-5.850 GHz SRRC： 2.4-2.4835 GHz;5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.4GHz FCC:<=26 dBm; CE: <=20 dBm; SRRC:<=20 dBm; MIC:<=18 dBm 5.2 GHz FCC:<=23 dBm 5.8 GHz FCC:<=23 dBm; CE <=13 dBm; SRRC: <=23 dBm; MIC: - |
REMOTE CONTROLLER
| Operating Frequency | 2.4 GHz to 2.483 GHz |
|---|---|
| Max Transmission Distance | FCC Compliant: 4.3 mi (7 km); CE Compliant: 2.5 mi (4 km) SRRC Compliant: 2.5mi (4 km) MIC Compliant: 2.5 mi (4 km) (Unobstructed, free of interference) |
| Operating Temperature Range | 32° to 104° F ( 0° to 40° C ) |
| Battery | 2970mAh |
| Transmitter Power (EIRP) | FCC：<=26 dBm CE：<=20 dBm SRRC: <=20 dBm MIC: <=18 dBm |
| Operating Current/Voltage | 950mA @ 3.7V |
| Supported Mobile Device Size | Thickness Supported:6.5-8.5mm Max length: 160mm Supported USB port types: Lightning, Micro USB(Type-B),USB(Type-C)™ |
GIMBAL
| Controllable Range | Pitch: -90° to +30° Roll: 0° or 90° (Horizontally and vertically) |
|---|---|
| Stabilization | 3-axis (pitch, roll, yaw) |
VISION SYSTEM
| Vision System | Forward Vision System Downward Vision System |
|---|---|
| Obstacle Sensory Range | Precision measurement range: 2 ft (0.7 m) to 49 ft (15 m) Detectable range: 49 ft (15 m) to 98 ft (30 m) |
| Operating Environment | Surface with clear pattern and adequate lighting (lux > 15) |
| Velocity Range | ≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 1 - 43 feet (0.3 - 13 m) |
| Operating Range | 1 - 43 feet (0.3 - 13 m) |
APP / LIVE VIEW
| Mobile App | DJI GO 4 |
|---|---|
| Live View Quality | 720p@30fps, 1080p@30fps（Remote Controller） 720p@30fps(Wi-Fi) 720p@60fps, 1080p@30fps（DJI Goggles） |
| Latency | 160-170ms (depending on conditions and mobile device) |
| Required Operating Systems |
|
CAMERA
| Sensor | 1/2.3” (CMOS), Effective pixels:12.35 M (Total pixels:12.71M) |
|---|---|
| Lens | FOV 78.8° 28 mm (35 mm format equivalent) f/2.2 Distortion < 1.5% Focus from 0.5 m to ∞ |
| ISO Range | video: 100-3200 photo: 100-1600 |
| Electronic Shutter Speed | 8s -1/8000 s |
| Image Size | 4000×3000 |
| Still Photography Modes | Single shot Burst shooting: 3/5/7 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval |
| Video Recording Modes | C4K: 4096×2160 24p 4K: 3840×2160 24/25/30p 2.7K: 2720x1530 24/25/30p FHD: 1920×1080 24/25/30/48/50/60/96p HD: 1280×720 24/25/30/48/50/60/120p |
| Max Video Bitrate | 60 Mbps |
| Supported File Systems | FAT32 ( ≤ 32 GB ); exFAT ( > 32 GB ) |
| Photo | JPEG, DNG |
| Video | MP4, MOV (MPEG-4 AVC/H.264) |
| Supported SD Cards | Micro SD™ Max capacity: 64 GB. Class 10 or UHS-1 rating required |
| Operating Temperature Range | 32° to 104° F ( 0° to 40° C ) |
WI-FI
| Operating Frequency | 2.4G/5G |
|---|---|
| Max Transmission Distance | 80 m(Distance), 50m(Height) (Unobstructed, free of interference) |
| Max Speed | 14 km/h (9 mph) |
| Max Ascent Speed | 6.6 ft/s(2 m/s) |
| Max Descent Speed | 3.3 ft/s(1 m/s) |
CHARGER
| Voltage | 13.05 V |
|---|---|
| Rated Power | 50 W |
INTELLIGENT FLIGHT BATTERY
| Capacity | 3830 mAh |
|---|---|
| Voltage | 11.4 V |
| Battery Type | LiPo 3S |
| Energy | 43.6 Wh |
| Net Weight | Approx.0.5 lbs(240 g) |
| Charging Temperature Range | 41° to 104° F ( 5° to 40° C ) |
- Flight Time: 27 mins
- Speed: 65 km/h
- Video Resolution: 4K
- Control Range: 7 km
- Gimbal: 3-axis
- Camera Resoluton: 12 MP
The DJI Mavic Pro is a small yet powerful drone that turns the sky into your creative canvas easily and without worry,helping you make every moment an aerial moment. Its compact size hides a high degree of complexity that makes it one of DJI’s mostsophisticated flying cameras ever. 24 high-performance computing cores, an all-new transmission system with a 4.3mi (7km) *range,5 vision sensors, and a 4K camera stabilized by a 3-axis mechanical gimbal, are at your commandwith just a push of your thumb or a tap of your finger.*Unobstructed, free of interference, when FCC compliant.
FLY FURTHER
Inside the Mavic’s pocket-sized remote controller is DJI’s brand new OcuSync transmission technology, with a range of 4.3mi (7km)*, HD 720p long range and Full HD 1080p short range video streaming.
*Unobstructed, free of interference, when FCC compliant.
NO BUMPS AND SCRAPES
An unprotected drone could hit obstacles during long distance flight or when descending from an inadequate height in Return to Home mode. The Mavic uses FlightAutonomy technology to sense obstacles up to 49ft (15m) away and allows the Mavic to bypass them or brake to hover, reducing accidents.
PRECISION HOVER
Satellite positioning can only help a drone hover in an unobstructed outdoor area free of interference. Without satellites, the drone will not be able to position and become susceptible to drifting. However, with forward and downward vision sensors, the Mavic can hover precisely indoors or in places without GPS.
STAY FLYING LONGER
The Mavic is only 1/6th the size of the Phantom 4 but this reduction in size doesn't mean a reduction in flight time. The Mavic actually flies much longer than you would expect from its compact size. It is capable of reaching an absolute maximum flight time of 27 minutes and a maximum distance of 8mi (13km) due to its powerful, high-efficiency motors.
4K ULTRA HD VIDEO
Mavic supports 4K video at 30fps. No Electronic Image Stabilization is used, ensuring all footage is 4K. We have created a miniaturized, ultra-precise 3-axis gimbal for the Mavic, capable of stabilizing the camera even during high-speed motion for smooth video and sharp photos.
PHOTOS WITH ALTITUDE
Everyone loves a good photo. Whether you just want to take a snap or are building up your portfolio, the Mavic’s 12-megapixel camera with Adobe DNG RAW support is ready to shoot.
SHOOT LIKE A PRO. AUTOMATICALLY.
You don’t need a film crew when you fly the Mavic because all you need is ActiveTrack. Just tell it who to track and it handles the rest, making you shoot like a pro.
WAVE FOR YOUR DRONIE
With the Mavic in the air pointing at you, a gesture is all it takes to snap a photo. Get selfies like you’ve never seen before with Mavic’s Gesture Mode.
FINELY TUNED CONTROL
If you are lining up a photo, or even flying indoors, you don’t want to be flying too fast. Flip on Tripod Mode and every move the Mavic makes becomes slow and precise.
FLY BY PHONE
Maybe all you want to do is grab a quick dronie, set up tracking to shoot a friend, or even just head skywards for a quick flight. All you need is your phone.
TAPFLY
Beginner pilots often have trouble flying in a straight line because they aren’t familiar with joysticks, which then makes shooting smooth video tricky. TapFly means you can just tap where you want to go and the Mavic will fly smoothly in that direction, so you can focus on controlling the gimbal and capturing photos and video. Flying really can be that easy.
AT YOUR COMMAND
The Mavic acts on your every instruction almost instantly. Whether you want to shoot a slow, graceful flowing shot, or get your blood pumping at 40mph (65kph) speeds in Sport Mode.
SEE THE WORLD LIKE A BIRD
See the world through the eyes of a bird when you wear the super high-quality wireless DJI Goggles.
SHOOT. EDIT. SHARE.
You have shot the most incredible scene imaginable. Now you can edit it with just a few taps in the DJI GO 4 Editor, and share it instantly for all the world to see.
DUAL REMOTE CONTROLLER MODE
Both Master and Slave remote controllers can control the aircraft and gimbal, but the master remote controller has priority. A more experienced pilot can use the Master remote controller to override a less experienced pilot for better safety. Dual Remote Controller Mode makes it fun and easy to fly the Mavic and film aerial footage collaboratively.
TWO SETS OF SENSORS. TWICE AS RELIABLE
On a drone, the most likely source of a problem is a sensor not working exactly as it should. This is why the Mavic has two of each key sensor. If one goes wrong, the other kicks in to take its place.
LEVEL HEADED
Stay at the same level height above the ground automatically. Don’t worry about flying too low, the Mavic will keep you at just the right height over uneven terrain.
SAFER, SMARTER BATTERIES
The Mavic’s Intelligent Flight Batteries give it a flight time of up to 27 minutes, allowing you to check battery level and status in real-time during a flight.
Highlights
Portable yet powerful, the Mavic Pro is your personal drone, ready to go with you everywhere.
In the box
AIRCRAFT
| Folded | H83mm x W83mm x L198mm |
|---|---|
| Diagonal Size (Propellers Excluded) | 335 mm |
| Weight (Battery & Propellers Included) | 1.62 lbs (734 g) (exclude gimbal cover) 1.64 lbs (743 g) (include gimbal cover) |
| Max Ascent Speed | 16.4 ft/s (5 m/s) in Sport mode |
| Max Descent Speed | 9.8 ft/s (3 m/s) |
| Max Speed | 40 mph (65 kph) in Sport mode without wind |
| Max Service Ceiling Above Sea Level | 16404 feet (5000 m) |
| Max Flight Time | 27 minutes (no wind at a consistent 15.5 mph (25 kph)) |
| Max Hovering Time | 24 minutes (no wind) |
| Overall Flight Time | 21 minutes ( In normal flight, 15% remaining battery level ) |
| Max Total Travel Distance (One Full Battery, No Wind) | 8 mi (13 km, no wind) |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) |
| Satellite Positioning Systems | GPS / GLONASS |
| Hover Accuracy Range | Vertical: +/- 0.1 m (when Vision Positioning is active) or +/-0.5 m Horizontal: +/- 0.3 m (when Vision Positioning is active) or +/-1.5 m |
| Operating Frequency | FCC: 2.4-2.4835GHz; 5.150-5.250 GHz; 5.725-5.850 GHz CE: 2.4-2.4835GHz; 5.725-5.850 GHz SRRC： 2.4-2.4835 GHz;5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.4GHz FCC:<=26 dBm; CE: <=20 dBm; SRRC:<=20 dBm; MIC:<=18 dBm 5.2 GHz FCC:<=23 dBm 5.8 GHz FCC:<=23 dBm; CE <=13 dBm; SRRC: <=23 dBm; MIC: - |
REMOTE CONTROLLER
| Operating Frequency | 2.4 GHz to 2.483 GHz |
|---|---|
| Max Transmission Distance | FCC Compliant: 4.3 mi (7 km); CE Compliant: 2.5 mi (4 km) SRRC Compliant: 2.5mi (4 km) MIC Compliant: 2.5 mi (4 km) (Unobstructed, free of interference) |
| Operating Temperature Range | 32° to 104° F ( 0° to 40° C ) |
| Battery | 2970mAh |
| Transmitter Power (EIRP) | FCC：<=26 dBm CE：<=20 dBm SRRC: <=20 dBm MIC: <=18 dBm |
| Operating Current/Voltage | 950mA @ 3.7V |
| Supported Mobile Device Size | Thickness Supported:6.5-8.5mm Max length: 160mm Supported USB port types: Lightning, Micro USB(Type-B),USB(Type-C)™ |
GIMBAL
| Controllable Range | Pitch: -90° to +30° Roll: 0° or 90° (Horizontally and vertically) |
|---|---|
| Stabilization | 3-axis (pitch, roll, yaw) |
VISION SYSTEM
| Vision System | Forward Vision System Downward Vision System |
|---|---|
| Obstacle Sensory Range | Precision measurement range: 2 ft (0.7 m) to 49 ft (15 m) Detectable range: 49 ft (15 m) to 98 ft (30 m) |
| Operating Environment | Surface with clear pattern and adequate lighting (lux > 15) |
| Velocity Range | ≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 1 - 43 feet (0.3 - 13 m) |
| Operating Range | 1 - 43 feet (0.3 - 13 m) |
APP / LIVE VIEW
| Mobile App | DJI GO 4 |
|---|---|
| Live View Quality | 720p@30fps, 1080p@30fps（Remote Controller） 720p@30fps(Wi-Fi) 720p@60fps, 1080p@30fps（DJI Goggles） |
| Latency | 160-170ms (depending on conditions and mobile device) |
| Required Operating Systems |
|
CAMERA
| Sensor | 1/2.3” (CMOS), Effective pixels:12.35 M (Total pixels:12.71M) |
|---|---|
| Lens | FOV 78.8° 28 mm (35 mm format equivalent) f/2.2 Distortion < 1.5% Focus from 0.5 m to ∞ |
| ISO Range | video: 100-3200 photo: 100-1600 |
| Electronic Shutter Speed | 8s -1/8000 s |
| Image Size | 4000×3000 |
| Still Photography Modes | Single shot Burst shooting: 3/5/7 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval |
| Video Recording Modes | C4K: 4096×2160 24p 4K: 3840×2160 24/25/30p 2.7K: 2720x1530 24/25/30p FHD: 1920×1080 24/25/30/48/50/60/96p HD: 1280×720 24/25/30/48/50/60/120p |
| Max Video Bitrate | 60 Mbps |
| Supported File Systems | FAT32 ( ≤ 32 GB ); exFAT ( > 32 GB ) |
| Photo | JPEG, DNG |
| Video | MP4, MOV (MPEG-4 AVC/H.264) |
| Supported SD Cards | Micro SD™ Max capacity: 64 GB. Class 10 or UHS-1 rating required |
| Operating Temperature Range | 32° to 104° F ( 0° to 40° C ) |
WI-FI
| Operating Frequency | 2.4G/5G |
|---|---|
| Max Transmission Distance | 80 m(Distance), 50m(Height) (Unobstructed, free of interference) |
| Max Speed | 14 km/h (9 mph) |
| Max Ascent Speed | 6.6 ft/s(2 m/s) |
| Max Descent Speed | 3.3 ft/s(1 m/s) |
CHARGER
| Voltage | 13.05 V |
|---|---|
| Rated Power | 50 W |
INTELLIGENT FLIGHT BATTERY
| Capacity | 3830 mAh |
|---|---|
| Voltage | 11.4 V |
| Battery Type | LiPo 3S |
| Energy | 43.6 Wh |
| Net Weight | Approx.0.5 lbs(240 g) |
| Charging Temperature Range | 41° to 104° F ( 5° to 40° C ) |
- Flight Time: 30 mins
- Noise Reduction: 4dB
- Video Resolution: 4K
- Control Range: 7 km
- Gimbal: 3-axis
- Camera Resoluton: 12 MP
Click HERE to know more about DJI MAVIC PRO PLATINUM.
MAVICPROPLATINUM
The Mavic Pro Platinum features a sleek design and compact body that is both powerful and alluring. A new and improved 30-minute flight time coupled with 60% noise power reduction makes the Mavic Pro Platinum DJI’s best portable drone yet.
In the box
- Flight Time: 27 mins
- Speed: 65 km/h
- Video Resolution: 4K
- Control Range: 7 km
- Gimbal: 3-axis
- Camera Resoluton: 12 MP
Click HERE to know more about DJI MAVIC PRO.
The DJI Mavic Pro is a small yet powerful drone that turns the sky into your creative canvas easily and without worry,helping you make every moment an aerial moment. Its compact size hides a high degree of complexity that makes it one of DJI’s mostsophisticated flying cameras ever. 24 high-performance computing cores, an all-new transmission system with a 4.3mi (7km) *range,5 vision sensors, and a 4K camera stabilized by a 3-axis mechanical gimbal, are at your commandwith just a push of your thumb or a tap of your finger.*Unobstructed, free of interference, when FCC compliant.
In the box

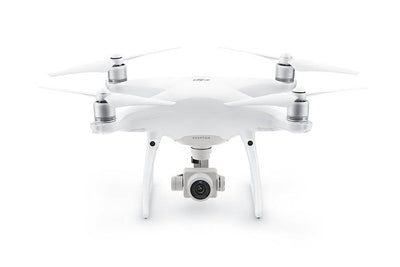

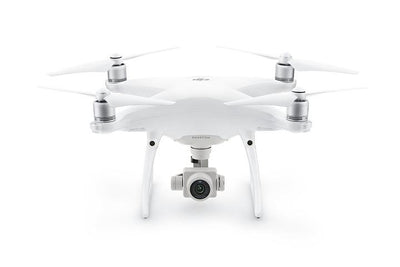

- Aircraft:
- Weight(Battery & Propellers Included): 1388g
- Diagonal Size(Propellers Exclueded): 350 mm
- Max Ascent Speed: 6 m/s(S-mode); 5 m/s(P-mode)
- Max Descent Speed: 4 m/s(S-mode); 3 m/s(P-mode)
- Max Flight Time: Approx. 30 mins
- Satellite Positioning Systems: GPS/GLONASS

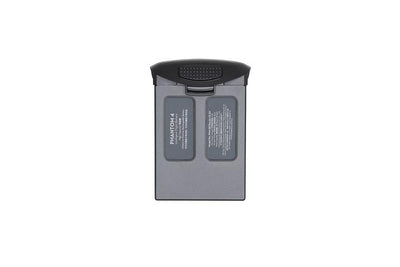

- Battery Capacity: 5870 mAh
- Battery Type: Lipo 4S
An uprated camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps.The adoption of titanium alloy and magnesium alloy construction increases the rigidity of the airframe and reduces weight, making thePhantom 4 Pro similar in weight to the Phantom 4. The FlightAutonomy system adds dual rear vision sensors and infraredsensing systems for a total of 5-direction of obstacle sensing and 4-direction of obstacle avoidance.
CAMERA WITH 1-INCH 20MP SENSOR
The onboard camera has been redesigned to use a 1-inch 20-megapixel CMOS sensor. A custom engineered lens made up of eight elements is arranged in seven groups, it is the first DJI camera to use a mechanical shutter, eliminating rolling shutter distortion which can occur when taking images of fast moving subjects or when flying at high speed. In effect, it is as powerful as many traditional ground cameras. More powerful
video processing supports H.264 4K videos at 60fps or H.265 4K at 30fps, both with a 100Mbps bitrate. Advanced sensors and processors ensure everything is captured with more image detail and the image data needed for advanced post-production.
5-DIRECTION OF OBSTACLE SENSING
FlightAutonomy is expanded with an additional set of high-resolution stereo vision sensors placed at the rear in addition to the pair placed at the frontas well as infrared sensing systems placed on the left and right sides. This network creates a total of 5-direction of obstacle sensing and 4-direction ofobstacle avoidance, protecting the Phantom 4 Pro from more obstacles and giving filmmakers the confidence to capture more complex images.
6-CAMERA NAVIGATION SYSTEM
Three sets of dual vision sensors form a 6-camera navigation system that works constantly to calculate the relative speed and distance between theaircraft and an object. Using this network of forward, rearward and downward vision sensors, the Phantom 4 Pro is able to hover precisely in placeswithout GPS when taking off indoors, or on balconies, or even when flying through windows with minimal pilot control. In the unlikely event that frontand downward sensors are unable to operate, the aircraft can still hover in place using the rear stereo vision system. The Phantom 4 Pro also is ableto fly in complex environments at a flight speed of up to 31mph (50kph) while avoiding obstacles in its path. In Narrow Sensing Mode, the Phantom 4Pro narrows its sensing scope enabling it to see in more detail and fly through small spaces.
INFRARED SENSING SYSTEM
The Phantom 4 Pro is the first DJI aircraft to use an infrared sensing system. Placed on the left, and right sides of the aircraft, these measure the distance between the aircraft and any obstacles using infrared 3D scanning. When in Beginner Mode and Tripod Mode, these sensors have a horizontal field of view of 70° and a vertical field of view of 20°, providing a wide view of the scene to the sides of the Phantom, and a maximum
range of 23ft (7m). Traditional ultrasonic sensors only have a detection range of 3-5m and may be confused when affected by propeller vibration. The infrared sensing system is able to sense larger areas and measure the distance between the aircraft, identifying the closest objects accurately while avoiding interference, providing more reliable sensing and protection.
A 5.5in 1080p screen integrated with the Phantom 4 Pro + offers 1000 cd/m2 of brightness, more than twice as bright as conventional smart devices.
As the DJI GO app is built into the screen, hardware and software can be fully optimized, allowing you to edit and share instantly. A five-hour battery life makes the Phantom 4 Pro + a complete aerial imaging solution. The integrated upgraded Lightbridge HD video transmission system supports dual frequencies for greater interference resistance and a maximum video transmission range of 4.3mi (7km)*.
*Unobstructed, free of interference, when FCC compliant.
Highlights
All-new DJI Phantom camera with 1-inch 20MP Exmor R CMOS sensor, longer flight time and smarter features.
In the Box
AIRCRAFT
| Weight (Battery & Propellers Included) | 1388 g |
|---|---|
| Diagonal Size (Propellers Excluded) | 350 mm |
| Max Ascent Speed | S-mode: 6 m/s P-mode: 5 m/s |
| Max Descent Speed | S-mode: 4 m/s P-mode: 3 m/s |
| Max Speed | S-mode: 45 mph (72 kph) A-mode: 36 mph (58 kph) P-mode: 31 mph (50 kph) |
| Max Tilt Angle | S-mode: 42° A-mode: 35° P-mode: 25° |
| Max Angular Speed | S-mode: 250°/s A-mode: 150°/s |
| Max Service Ceiling Above Sea Level | 19685 feet (6000 m) |
| Max Wind Speed Resistance | 10 m/s |
| Max Flight Time | Approx. 30 minutes |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS Positioning) |
VISION SYSTEM
| Vision System | Forward Vision System Backward Vision System Downward Vision System |
|---|---|
| Velocity Range | ≤31 mph (50 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 0 - 33 feet (0 - 10 m) |
| Operating Range | 0 - 33 feet (0 - 10 m) |
| Obstacle Sensory Range | 2 - 98 feet (0.7 - 30 m) |
| FOV | Forward: 60°(Horizontal), ±27°(Vertical) Backward: 60°(Horizontal), ±27°(Vertical) Downward: 70°(Front and Rear), 50°(Left and Right) |
| Measuring Frequency | Forward: 10 Hz Backward: 10 Hz Downward: 20 Hz |
| Operating Environment | Surface with clear pattern and adequate lighting (lux>15) |
CAMERA
| Sensor | 1’’ CMOS Effective pixels: 20M |
|---|---|
| Lens | FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞ |
| ISO Range | Video: 100 - 3200 (Auto) 100 - 6400 (Manual) Photo: 100 - 3200 (Auto) 100- 12800 (Manual) |
| Mechanical Shutter Speed | 8 - 1/2000 s |
| Electronic Shutter Speed | 8 - 1/8000 s |
| Image Size | 3:2 Aspect Ratio: 5472 × 3648 4:3 Aspect Ratio: 4864 × 3648 16:9 Aspect Ratio: 5472 × 3078 |
| PIV Image Size | 4096×2160(4096×2160 24/25/30/48/50p) 3840×2160(3840×2160 24/25/30/48/50/60p) 2720×1530(2720×1530 24/25/30/48/50/60p) 1920×1080(1920×1080 24/25/30/48/50/60/120p) 1280×720(1280×720 24/25/30/48/50/60/120p) |
| Still Photography Modes | Single Shot Burst Shooting: 3/5/7/10/14 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval: 2/3/5/7/10/15/20/30/60 s |
| Video Recording Modes | H.265 C4K:4096×2160 24/25/30p @100Mbps 4K:3840×2160 24/25/30p @100Mbps 2.7K:2720×1530 24/25/30p @65Mbps 2.7K:2720×1530 48/50/60p @80Mbps FHD:1920×1080 24/25/30p @50Mbps FHD:1920×1080 48/50/60p @65Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @25Mbps HD:1280×720 48/50/60p @35Mbps HD:1280×720 120p @60Mbps H.264 C4K:4096×2160 24/25/30/48/50/60p @100Mbps 4K:3840×2160 24/25/30/48/50/60p @100Mbps 2.7K:2720×1530 24/25/30p @80Mbps 2.7K:2720×1530 48/50/60p @100Mbps FHD:1920×1080 24/25/30p @60Mbps FHD:1920×1080 48/50/60 @80Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @30Mbps HD:1280×720 48/50/60p @45Mbps HD:1280×720 120p @80Mbps |
| Max Video Bitrate | 100 Mbps |
| Supported File Systems | FAT32 (≤32 GB); exFAT (>32 GB) |
| Photo | JPEG, DNG (RAW), JPEG + DNG |
| Video | MP4/MOV (AVC/H.264; HEVC/H.265) |
| Supported SD Cards | Micro SD Max Capacity: 128GB Write speed ≥15MB/s, Class 10 or UHS-1 rating required |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
CHARGER
| Voltage | 17.4 V |
|---|---|
| Rated Power | 100 W |
APP / LIVE VIEW
| Mobile App | DJI GO 4 |
|---|---|
| Live View Working Frequency | 2.4 GHz ISM, 5.8 GHz ISM |
| Live View Quality | 720P @ 30fps |
| Latency | Phantom 4 Pro: 220 ms (depending on conditions and mobile device) Phantom 4 Pro +：160 - 180 ms |
| Required Operating Systems | iOS 9.0 or later Android 4.4.0 or later |
GIMBAL
| Stabilization | 3-axis (pitch, roll, yaw) |
|---|---|
| Controllable Range | Pitch: -90° to +30° |
| Max Controllable Angular Speed | Pitch: 90°/s |
| Angular Control Accuracy | ±0.02° |
INFRARED SENSING SYSTEM
| Obstacle Sensory Range | 0.6 - 23 feet (0.2 - 7 m) |
|---|---|
| FOV | 70° (Horizontal), ±10° (Vertical) |
| Measuring Frequency | 10 Hz |
| Operating Environment | Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.) |
REMOTE CONTROLLER
| Operating Frequency | 2.400 - 2.483 GHz and 5.725 - 5.825 GHz |
|---|---|
| Max Transmission Distance | 2.400 - 2.483 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 2.2 mi (3.5 km) SRRC: 2.5 mi (4 km) 5.725 - 5.825 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 1.2 mi (2 km) SRRC: 3.1 mi (5 km) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Battery | 6000 mAh LiPo 2S |
| Transmitter Power (EIRP) | 2.400 - 2.483 GHz FCC: 26 dBm CE: 17 dBm SRRC: 20 dBm MIC: 17 dBm 5.725 - 5.825 GHz FCC: 28 dBm CE: 14 dBm SRRC: 20 dBm MIC: - |
| Operating Current/Voltage | 1.2 A@7.4 V |
| Video Output Port | GL300E: HDMI GL300F: USB |
| Mobile Device Holder | GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM) GL300F: Tablets and smart phones |
INTELLIGENT FLIGHT BATTERY
| Capacity | 5870 mAh |
|---|---|
| Voltage | 15.2 V |
| Battery Type | LiPo 4S |
| Energy | 89.2 Wh |
| Net Weight | 468 g |
| Charging Temperature Range | 41° to 104°F (5° to 40°C) |
| Max Charging Power | 160 W |
- Aircraft:
- Weight(Battery & Propellers Included): 1368g
- Diagonal Size(Propellers Exclueded): 350 mm
- Max Ascent Speed: 6 m/s(S-mode); 5 m/s(P-mode)
- Max Descent Speed: 4 m/s(S-mode); 3 m/s(P-mode)
- Max Flight Time: Approx. 30 mins
- Satellite Positioning Systems: GPS/GLONASS
- Battery Capacity: 5870 mAh
- Battery Type: Lipo 4S
An uprated camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60 fps video and Burst Mode stills at 14 fps. The FlightAutonomy system includes five vision sensors for 2-directional obstacle sensing and forward-vision obstacle avoidance. The adoption of titanium alloy and magnesium alloy increases
the rigidity of the airframe and reduces weight, making the Phantom 4 Advanced even lighter than the Phantom 4.
The onboard camera is equipped with a 1-inch 20-megapixel CMOS sensor. A mechanical shutter is used to eliminate rolling shutter distortion, which can occur when taking images of fast-moving subjects or when flying at high speeds. In effect, it is as powerful as many professional cameras. More powerful video processing supports H.264 4K videos at 60 fps or H.265 4K at 30 fps, both with a 100Mbps bitrate. Excellent optical performance, sensors, and processors ensure everything is captured with high dynamic range and more image detail needed for advanced post-production.
1-INCH 20-MEGAPIXEL CMOS
Sensor size is more important to image quality than the number of pixels because a larger sensor captures more information in every pixel, improvingdynamic range, signal-to-noise ratio, and low light performance. The 1-inch 20-megapixel CMOS sensor in the Phantom 4 Advanced is almost four timesthe size of the Phantom 4's 1/2.3in sensor. It uses larger pixels and has a maximum ISO of 12800 as well as increased contrast. It is good enough forimages to be used immediately, while also capturing enough detail for advanced post-processing.
PROFESSIONAL 4K VIDEO
An enhanced video processing system allows video to be captured in cinema and production optimized DCI 4K/60 (4096 x 2160/60 fps) at a bitrate of 100 Mbps, enabling you to get high-resolution slow motion shots. The Phantom 4 Advanced also supports the H.265 video codec (maximum resolution 4096X2160/30 fps).
For a given bitrate, H.265 doubles the amount of image processing as H.264, resulting in significantly enhanced image quality. Recording in high dynamic range D-log makes the most of image data for color grading.
Highlights
1-inch 20MP sensor, 30-min flight time, forward obstacle avoidance, smart features and more. Advanced Aerial Imaging Technology.
In the Box
AIRCRAFT
| Weight (Battery & Propellers Included) | 1368 g |
|---|---|
| Diagonal Size (Propellers Excluded) | 350 mm |
| Max Ascent Speed | S-mode: 6 m/s P-mode:5 m/s |
| Max Descent Speed | S-mode:4 m/s P-mode:3 m/s |
| Max Speed | S-mode: 45 mph (72 kph) A-mode: 36 mph (58 kph) P-mode: 31 mph (50 kph) |
| Max Tilt Angle | S-mode:42° A-mode:35° P-mode:25° |
| Max Angular Speed | S-mode: 250°/s A-mode: 150°/s |
| Max Service Ceiling Above Sea Level | 19685 feet (6000 m) |
| Max Wind Speed Resistance | 10 m/s |
| Max Flight Time | Approx. 30 minutes |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS Positioning) |
VISION SYSTEM
| Vision System | Forward Vision System Downward Vision System |
|---|---|
| Velocity Range | ≤31 mph (50 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 0 - 33 feet (0 - 10 m) |
| Operating Range | 0 - 33 feet (0 - 10 m) |
| Obstacle Sensory Range | 2 - 98 feet (0.7 - 30 m) |
| FOV | Forward: 60°(Horizontal), ±27°(Vertical) Downward: 70°(Front and Rear), 50°(Left and Right) |
| Measuring Frequency | Forward: 10 Hz Downward: 20 Hz |
| Operating Environment | Surface with clear pattern and adequate lighting (lux>15) |
REMOTE CONTROLLER
| Operating Frequency | 2.400 - 2.483 GHz |
|---|---|
| Max Transmission Distance | 2.400 - 2.483 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 2.2 mi (3.5 km) SRRC: 2.5 mi (4 km) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Battery | 6000 mAh LiPo 2S |
| Transmitter Power (EIRP) | 2.400 - 2.483 GHz FCC: 26 dBm CE: 17 dBm SRRC: 20 dBm MIC: 17 dBm |
| Operating Current/Voltage | 1.2 A@7.4 V |
| Video Output Port | GL300E: HDMI GL300C: USB |
| Mobile Device Holder | GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM) GL300C: Tablets and smart phones |
INTELLIGENT FLIGHT BATTERY
| Capacity | 5870 mAh |
|---|---|
| Voltage | 15.2 V |
| Battery Type | LiPo 4S |
| Energy | 89.2 Wh |
| Net Weight | 468 g |
| Charging Temperature Range | 41° to 104°F (5° to 40°C) |
| Max Charging Power | 160 W |
GIMBAL
| Stabilization | 3-axis (pitch, roll, yaw) |
|---|---|
| Controllable Range | Pitch: -90° to +30° |
| Max Controllable Angular Speed | Pitch: 90°/s |
| Angular Control Accuracy | ±0.02° |
CAMERA
| Sensor | 1’’ CMOS Effective pixels: 20M |
|---|---|
| Lens | FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞ |
| ISO Range | Video: 100 - 3200 (Auto) 100 - 6400 (Manual) Photo: 100 - 3200 (Auto) 100- 12800 (Manual) |
| Mechanical Shutter Speed | 8 - 1/2000 s |
| Electronic Shutter Speed | 8 - 1/8000 s |
| Image Size | 3:2 Aspect Ratio: 5472 × 3648 4:3 Aspect Ratio: 4864 × 3648 16:9 Aspect Ratio: 5472 × 3078 |
| PIV Image Size | 4096×2160(4096×2160 24/25/30/48/50p) 3840×2160(3840×2160 24/25/30/48/50/60p) 2720×1530(2720×1530 24/25/30/48/50/60p) 1920×1080(1920×1080 24/25/30/48/50/60/120p) 1280×720(1280×720 24/25/30/48/50/60/120p) |
| Still Photography Modes | Single Shot Burst Shooting: 3/5/7/10/14 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval: 2/3/5/7/10/15/20/30/60 s |
| Video Recording Modes | H.265 C4K:4096×2160 24/25/30p @100Mbps 4K:3840×2160 24/25/30p @100Mbps 2.7K:2720×1530 24/25/30p @65Mbps 2.7K:2720×1530 48/50/60p @80Mbps FHD:1920×1080 24/25/30p @50Mbps FHD:1920×1080 48/50/60p @65Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @25Mbps HD:1280×720 48/50/60p @35Mbps HD:1280×720 120p @60Mbps H.264 C4K:4096×2160 24/25/30/48/50/60p @100Mbps 4K:3840×2160 24/25/30/48/50/60p @100Mbps 2.7K:2720×1530 24/25/30p @80Mbps 2.7K:2720×1530 48/50/60p @100Mbps FHD:1920×1080 24/25/30p @60Mbps FHD:1920×1080 48/50/60 @80Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @30Mbps HD:1280×720 48/50/60p @45Mbps HD:1280×720 120p @80Mbps |
| Max Video Bitrate | 100 Mbps |
| Supported File Systems | FAT32 (≤32 GB); exFAT (>32 GB) |
| Photo | JPEG, DNG (RAW), JPEG + DNG |
| Video | MP4/MOV (AVC/H.264; HEVC/H.265) |
| Supported SD Cards | Micro SD Max Capacity: 128GB Write speed ≥15MB/s, Class 10 or UHS-1 rating required |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
CHARGER
| Voltage | 17.5V |
|---|---|
| Rated Power | 100 W |
APP / LIVE VIEW
| Mobile App | DJI GO 4 |
|---|---|
| Live View Working Frequency | 2.4 GHz ISM |
| Live View Quality | 720P @ 30fps |
| Latency | Phantom 4 Advanced: 220 ms (depending on conditions and mobile device) Phantom 4 Advanced +：160 - 180 ms |
| Required Operating Systems | iOS 9.0 or later Android 4.4.0 or later |
- Capacity: 5870 mAh
- Voltage: 15.2 V
- Battery Type: LiPo 4S
- Energy: 89.2 Wh
- Net Weight: 468 g
- Charging Temperature Range: 41° to 104°F (5° to 40°C)
- Max Charging Power: 160 W
Overview
Professional aerial imaging benefits from longer flight times. The Phantom 4 Pro has a maximum flight time of 30 minutes, providing more time in the air to capture the perfect shot. The DJI GO 4 app shows battery lifetime and calculates remaining flight times according to distance traveled and more. It will give alerts when it reaches a minimum safe amount required for a safe journey back to the takeoff point. An advanced battery management system is also in place to prevent overcharging and over draining. When placed in longer term storage, batteries will discharge power to maintain good health.
Highlights
- 30-minute flight time
- View battery status via DJI GO app
- Self-discharge protection
- Over-charge and discharge protection
In the Box
Phantom 4 Pro Intelligent Flight Battery (Obsidian) × 1
- Capacity: 3830 mAh
- Voltage: 11.4 V
- Battery Type: LiPo 3S
- Energy: 43.6 Wh
- Net Weight: Approx.0.5 lbs (240 g)
- Operating Temperature: 41° to 104° F (5° to 40° C)
Overview
It adopts the latest technologies to ensure that the flight control system is able to obtain accurate battery level. This allows it to calculate remaining flight times more accurately. It also gives pilots a full understanding of the overall battery status, including real-time battery cell status, circle number, temperature and more, and all in the DJI GO app. As well as monitoring the battery status during flight, the BMS also has overcharge and over discharge protection, reducing the likelihood of battery damage. When not in use for extended periods of time, DJI Intelligent Flight Battery automatically discharges to 50% charge, keeping it at an optimum charge level for extended battery life. When flying in cold temperatures, the BMS will activate low-temperature protection and will control power output according to the temperature. This ensures the battery can provide adequate propulsion without damage from the cold.
Highlights
- Max 27-min flight time
- View battery status via DJI GO app
- Self-discharge protection
- Over-charge and discharge protection
In the Box
Mavic - Intelligent Flight Battery × 1
- Aircraft:
- Weight(Battery & Propellers Included): 1388g
- Diagonal Size(Propellers Exclueded): 350 mm
- Max Ascent Speed: 6 m/s(S-mode); 5 m/s(P-mode)
- Max Descent Speed: 4 m/s(S-mode); 3 m/s(P-mode)
- Max Flight Time: Approx. 30 mins
- Satellite Positioning Systems: GPS/GLONASS
- Battery Capacity: 5870 mAh
- Battery Type: Lipo 4S
The first DJI aircraft to use an infrared sensing system & mechanical shutter (with LCD).
An uprated camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps.The adoption of titanium alloy and magnesium alloy construction increases the rigidity of the airframe and reduces weight, making thePhantom 4 Pro similar in weight to the Phantom 4. The FlightAutonomy system adds dual rear vision sensors and infraredsensing systems for a total of 5-direction of obstacle sensing and 4-direction of obstacle avoidance.
CAMERA WITH 1-INCH 20MP SENSOR
The onboard camera has been redesigned to use a 1-inch 20-megapixel CMOS sensor. A custom engineered lens made up of eight elements is arranged in seven groups, it is the first DJI camera to use a mechanical shutter, eliminating rolling shutter distortion which can occur when taking images of fast moving subjects or when flying at high speed. In effect, it is as powerful as many traditional ground cameras. More powerful
video processing supports H.264 4K videos at 60fps or H.265 4K at 30fps, both with a 100Mbps bitrate. Advanced sensors and processors ensure everything is captured with more image detail and the image data needed for advanced post-production.
5-DIRECTION OF OBSTACLE SENSING
FlightAutonomy is expanded with an additional set of high-resolution stereo vision sensors placed at the rear in addition to the pair placed at the frontas well as infrared sensing systems placed on the left and right sides. This network creates a total of 5-direction of obstacle sensing and 4-direction ofobstacle avoidance, protecting the Phantom 4 Pro from more obstacles and giving filmmakers the confidence to capture more complex images.
6-CAMERA NAVIGATION SYSTEM
Three sets of dual vision sensors form a 6-camera navigation system that works constantly to calculate the relative speed and distance between theaircraft and an object. Using this network of forward, rearward and downward vision sensors, the Phantom 4 Pro is able to hover precisely in placeswithout GPS when taking off indoors, or on balconies, or even when flying through windows with minimal pilot control. In the unlikely event that frontand downward sensors are unable to operate, the aircraft can still hover in place using the rear stereo vision system. The Phantom 4 Pro also is ableto fly in complex environments at a flight speed of up to 31mph (50kph) while avoiding obstacles in its path. In Narrow Sensing Mode, the Phantom 4Pro narrows its sensing scope enabling it to see in more detail and fly through small spaces.
INFRARED SENSING SYSTEM
The Phantom 4 Pro is the first DJI aircraft to use an infrared sensing system. Placed on the left, and right sides of the aircraft, these measure the distance between the aircraft and any obstacles using infrared 3D scanning. When in Beginner Mode and Tripod Mode, these sensors have a horizontal field of view of 70° and a vertical field of view of 20°, providing a wide view of the scene to the sides of the Phantom, and a maximum
range of 23ft (7m). Traditional ultrasonic sensors only have a detection range of 3-5m and may be confused when affected by propeller vibration. The infrared sensing system is able to sense larger areas and measure the distance between the aircraft, identifying the closest objects accurately while avoiding interference, providing more reliable sensing and protection.
A 5.5in 1080p screen integrated with the Phantom 4 Pro + offers 1000 cd/m2 of brightness, more than twice as bright as conventional smart devices.
As the DJI GO app is built into the screen, hardware and software can be fully optimized, allowing you to edit and share instantly. A five-hour battery life makes the Phantom 4 Pro + a complete aerial imaging solution. The integrated upgraded Lightbridge HD video transmission system supports dual frequencies for greater interference resistance and a maximum video transmission range of 4.3mi (7km)*.
*Unobstructed, free of interference, when FCC compliant.
Highlights
All-new DJI Phantom camera with 1-inch 20MP Exmor R CMOS sensor, longer flight time and smarter features.
In the Box
AIRCRAFT
| Weight (Battery & Propellers Included) | 1388 g |
|---|---|
| Diagonal Size (Propellers Excluded) | 350 mm |
| Max Ascent Speed | S-mode: 6 m/s P-mode: 5 m/s |
| Max Descent Speed | S-mode: 4 m/s P-mode: 3 m/s |
| Max Speed | S-mode: 45 mph (72 kph) A-mode: 36 mph (58 kph) P-mode: 31 mph (50 kph) |
| Max Tilt Angle | S-mode: 42° A-mode: 35° P-mode: 25° |
| Max Angular Speed | S-mode: 250°/s A-mode: 150°/s |
| Max Service Ceiling Above Sea Level | 19685 feet (6000 m) |
| Max Wind Speed Resistance | 10 m/s |
| Max Flight Time | Approx. 30 minutes |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS Positioning) |
VISION SYSTEM
| Vision System | Forward Vision System Backward Vision System Downward Vision System |
|---|---|
| Velocity Range | ≤31 mph (50 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 0 - 33 feet (0 - 10 m) |
| Operating Range | 0 - 33 feet (0 - 10 m) |
| Obstacle Sensory Range | 2 - 98 feet (0.7 - 30 m) |
| FOV | Forward: 60°(Horizontal), ±27°(Vertical) Backward: 60°(Horizontal), ±27°(Vertical) Downward: 70°(Front and Rear), 50°(Left and Right) |
| Measuring Frequency | Forward: 10 Hz Backward: 10 Hz Downward: 20 Hz |
| Operating Environment | Surface with clear pattern and adequate lighting (lux>15) |
CAMERA
| Sensor | 1’’ CMOS Effective pixels: 20M |
|---|---|
| Lens | FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞ |
| ISO Range | Video: 100 - 3200 (Auto) 100 - 6400 (Manual) Photo: 100 - 3200 (Auto) 100- 12800 (Manual) |
| Mechanical Shutter Speed | 8 - 1/2000 s |
| Electronic Shutter Speed | 8 - 1/8000 s |
| Image Size | 3:2 Aspect Ratio: 5472 × 3648 4:3 Aspect Ratio: 4864 × 3648 16:9 Aspect Ratio: 5472 × 3078 |
| PIV Image Size | 4096×2160(4096×2160 24/25/30/48/50p) 3840×2160(3840×2160 24/25/30/48/50/60p) 2720×1530(2720×1530 24/25/30/48/50/60p) 1920×1080(1920×1080 24/25/30/48/50/60/120p) 1280×720(1280×720 24/25/30/48/50/60/120p) |
| Still Photography Modes | Single Shot Burst Shooting: 3/5/7/10/14 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval: 2/3/5/7/10/15/20/30/60 s |
| Video Recording Modes | H.265 C4K:4096×2160 24/25/30p @100Mbps 4K:3840×2160 24/25/30p @100Mbps 2.7K:2720×1530 24/25/30p @65Mbps 2.7K:2720×1530 48/50/60p @80Mbps FHD:1920×1080 24/25/30p @50Mbps FHD:1920×1080 48/50/60p @65Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @25Mbps HD:1280×720 48/50/60p @35Mbps HD:1280×720 120p @60Mbps H.264 C4K:4096×2160 24/25/30/48/50/60p @100Mbps 4K:3840×2160 24/25/30/48/50/60p @100Mbps 2.7K:2720×1530 24/25/30p @80Mbps 2.7K:2720×1530 48/50/60p @100Mbps FHD:1920×1080 24/25/30p @60Mbps FHD:1920×1080 48/50/60 @80Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @30Mbps HD:1280×720 48/50/60p @45Mbps HD:1280×720 120p @80Mbps |
| Max Video Bitrate | 100 Mbps |
| Supported File Systems | FAT32 (≤32 GB); exFAT (>32 GB) |
| Photo | JPEG, DNG (RAW), JPEG + DNG |
| Video | MP4/MOV (AVC/H.264; HEVC/H.265) |
| Supported SD Cards | Micro SD Max Capacity: 128GB Write speed ≥15MB/s, Class 10 or UHS-1 rating required |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
CHARGER
| Voltage | 17.4 V |
|---|---|
| Rated Power | 100 W |
APP / LIVE VIEW
| Mobile App | DJI GO 4 |
|---|---|
| Live View Working Frequency | 2.4 GHz ISM, 5.8 GHz ISM |
| Live View Quality | 720P @ 30fps |
| Latency | Phantom 4 Pro: 220 ms (depending on conditions and mobile device) Phantom 4 Pro +：160 - 180 ms |
| Required Operating Systems | iOS 9.0 or later Android 4.4.0 or later |
GIMBAL
| Stabilization | 3-axis (pitch, roll, yaw) |
|---|---|
| Controllable Range | Pitch: -90° to +30° |
| Max Controllable Angular Speed | Pitch: 90°/s |
| Angular Control Accuracy | ±0.02° |
INFRARED SENSING SYSTEM
| Obstacle Sensory Range | 0.6 - 23 feet (0.2 - 7 m) |
|---|---|
| FOV | 70° (Horizontal), ±10° (Vertical) |
| Measuring Frequency | 10 Hz |
| Operating Environment | Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.) |
REMOTE CONTROLLER
| Operating Frequency | 2.400 - 2.483 GHz and 5.725 - 5.825 GHz |
|---|---|
| Max Transmission Distance | 2.400 - 2.483 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 2.2 mi (3.5 km) SRRC: 2.5 mi (4 km) 5.725 - 5.825 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 1.2 mi (2 km) SRRC: 3.1 mi (5 km) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Battery | 6000 mAh LiPo 2S |
| Transmitter Power (EIRP) | 2.400 - 2.483 GHz FCC: 26 dBm CE: 17 dBm SRRC: 20 dBm MIC: 17 dBm 5.725 - 5.825 GHz FCC: 28 dBm CE: 14 dBm SRRC: 20 dBm MIC: - |
| Operating Current/Voltage | 1.2 A@7.4 V |
| Video Output Port | GL300E: HDMI GL300F: USB |
| Mobile Device Holder | GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM) GL300F: Tablets and smart phones |
INTELLIGENT FLIGHT BATTERY
| Capacity | 5870 mAh |
|---|---|
| Voltage | 15.2 V |
| Battery Type | LiPo 4S |
| Energy | 89.2 Wh |
| Net Weight | 468 g |
| Charging Temperature Range | 41° to 104°F (5° to 40°C) |
| Max Charging Power | 160 W |
