SURECOM SW-102 VU V.S.W.R. power meter with frequency counter

SURECOM SW-102 VU V.S.W.R. POWER METER with frequency counter - GadgetiCloud
Regular price $55.50

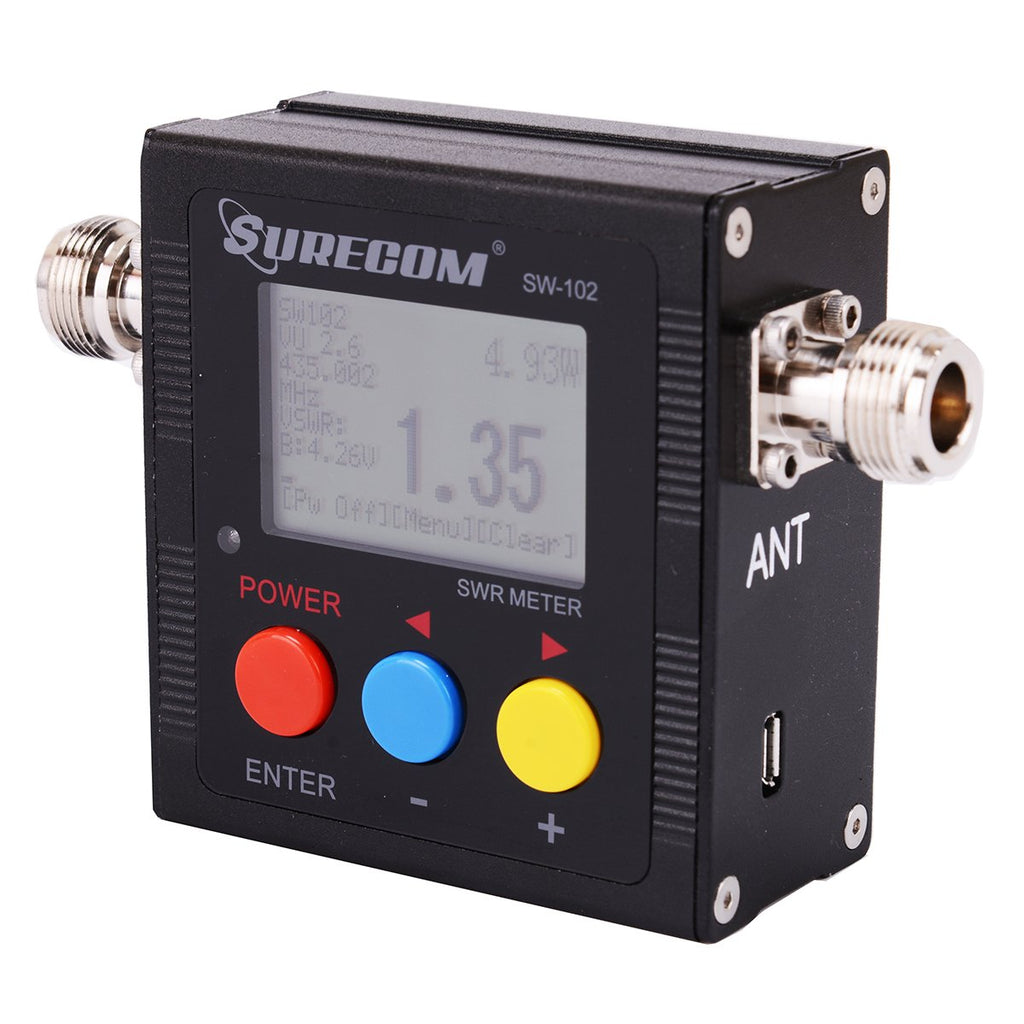

V.S.W.R. meter Introduction

VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
Build in Frequency counter .
All Funtion display ( Frequency,Power , SWR,FW,RW,Battery Level)

Feature & Specification
Frequency range: 125 - 525MHz
Measurable power range: 0.5 - 120W(+-0.5%)
Input  read frequency counter (must be < 0.5 W)
Maximum power: 120W
Impedance: 50Ω
Size: W 76 X H 77 X D35 mm.
Weight: < 220 grams
Battery : 3.7V Li-ion Rechargeable Battery

* Not for the digital radio.

Interface: N-J Interface

SURECOM SW-102 VU V.S.W.R. POWER METER with frequency counter 409 shop



  • Power ON/OFF:

Press 2 second the [Red button] to power on or power off

MENU Dispaly  (Note: Version for up to V3.8)

SURECOM SW-102 VU V.S.W.R. POWER METER with frequency counter



  • Set & Save​:
  1. Press MENU [Blue button]
  2. Press F1 [Red button)(Select 1-5 Funtion)
  3. Press [Blue button] ( - ), [Yellow button] (+)
  4. Press the  [Red button ]for 2 seconds
  5. Press the  [Blue button] to SAVE and EXIT



  • How to check the S.W.R. of your Antenna :

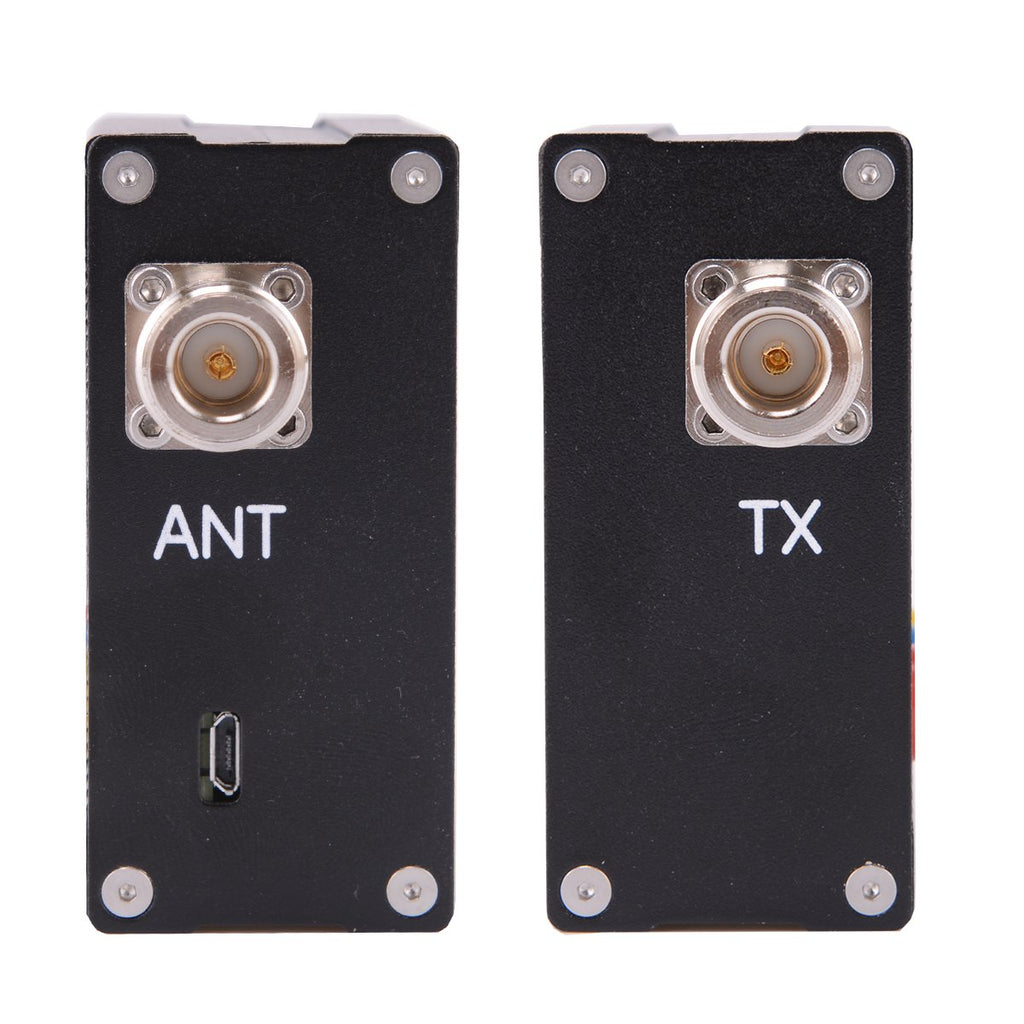

    ​Connect to "TX" on Radio output  and Antenna  to "ANT".  Proper adaptor/cable is required if your device has different type of connectors.
  1. Measurement V.S.W.R. : (see Pic.1)
  2. SW-102 TX connect Radio RF out
  3. Radio TX , SW-102 with display S.W.R. measure data.
    Do not affect the test in the following cases, there are objects nearby, placed horizontally.



  • How to check the output Watt of your transceiver :
    Connect to "TX" on Radio output and dummy Load to "ANT".  Proper adaptor/cable is required if your device has different type of connectors.
  1. Measurement Power: (see Pic.2)
  2. SW-102 TX connect Radio RF out
  3. SW-102 ANT connect 50 ohm Dummy Load
  4. Push Radio TX , SW-102 display is Power  measure data.
    (SW-102 is not for DMR system)



  • How to display rotate : (ver 2.02only )
  1. Press Yellow key to rotate display in 180 degree ,
  2. Press Yellow key to normal



  • Package Contents

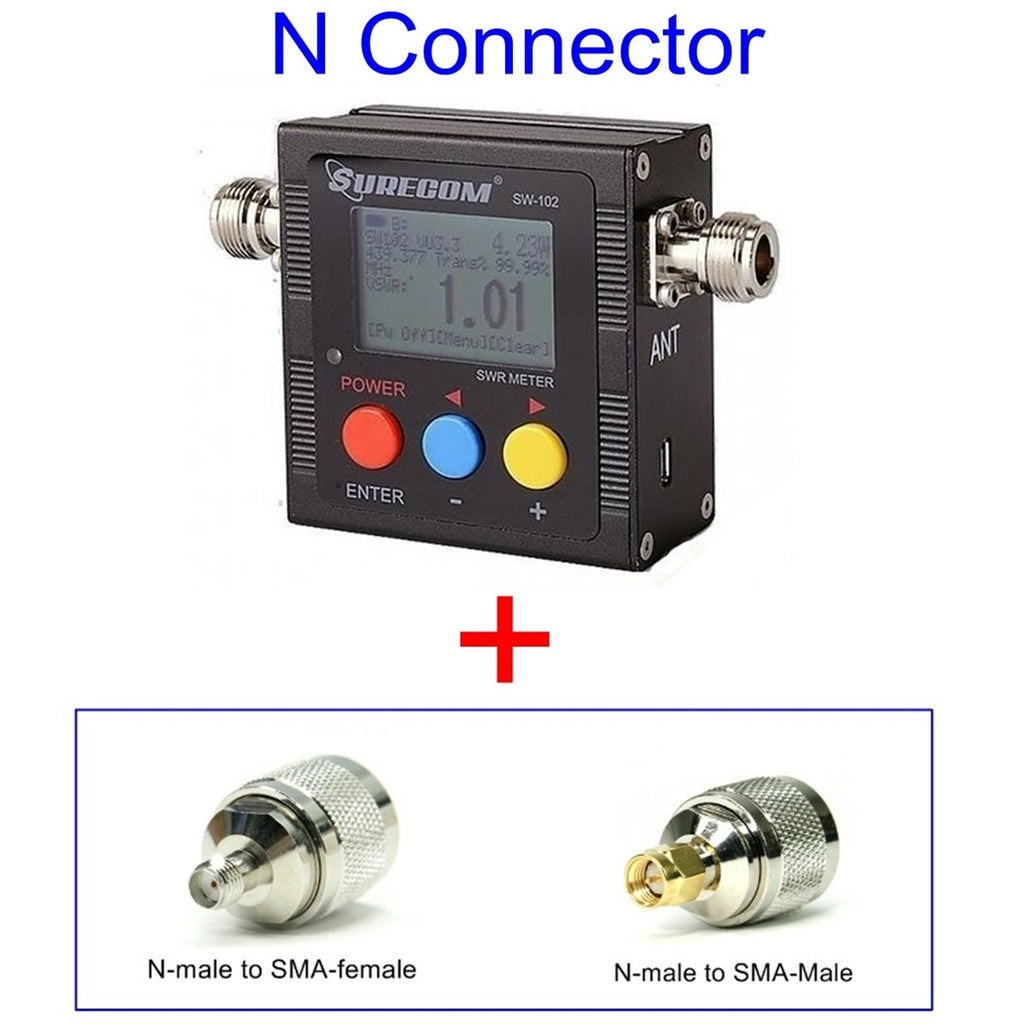

  • 1x SURECOM  SW-102-UV Power & SWR Meter  (N - connector)
  • 1x Power PSU 100-240V
  • 1x Charger Cable
  • 1x English Users Manual
  • Warranty1-year warranty
  • World Wide ShippingWe Ship World Wide
  • Customer ServiceEmail/FB/Whatsapp/Phone

V.S.W.R. meter Introduction

VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
Build in Frequency counter .
All Funtion display ( Frequency,Power , SWR,FW,RW,Battery Level)

Feature & Specification
Frequency range: 125 - 525MHz
Measurable power range: 0.5 - 120W(+-0.5%)
Input  read frequency counter (must be < 0.5 W)
Maximum power: 120W
Impedance: 50Ω
Size: W 76 X H 77 X D35 mm.
Weight: < 220 grams
Battery : 3.7V Li-ion Rechargeable Battery

* Not for the digital radio.

Interface: N-J Interface

SURECOM SW-102 VU V.S.W.R. POWER METER with frequency counter 409 shop



  • Power ON/OFF:

Press 2 second the [Red button] to power on or power off

MENU Dispaly  (Note: Version for up to V3.8)

SURECOM SW-102 VU V.S.W.R. POWER METER with frequency counter



  • Set & Save​:
  1. Press MENU [Blue button]
  2. Press F1 [Red button)(Select 1-5 Funtion)
  3. Press [Blue button] ( - ), [Yellow button] (+)
  4. Press the  [Red button ]for 2 seconds
  5. Press the  [Blue button] to SAVE and EXIT



  • How to check the S.W.R. of your Antenna :
    ​Connect to "TX" on Radio output  and Antenna  to "ANT".  Proper adaptor/cable is required if your device has different type of connectors.
  1. Measurement V.S.W.R. : (see Pic.1)
  2. SW-102 TX connect Radio RF out
  3. Radio TX , SW-102 with display S.W.R. measure data.
    Do not affect the test in the following cases, there are objects nearby, placed horizontally.



  • How to check the output Watt of your transceiver :
    Connect to "TX" on Radio output and dummy Load to "ANT".  Proper adaptor/cable is required if your device has different type of connectors.
  1. Measurement Power: (see Pic.2)
  2. SW-102 TX connect Radio RF out
  3. SW-102 ANT connect 50 ohm Dummy Load
  4. Push Radio TX , SW-102 display is Power  measure data.
    (SW-102 is not for DMR system)



  • How to display rotate : (ver 2.02only )
  1. Press Yellow key to rotate display in 180 degree ,
  2. Press Yellow key to normal



  • Package Contents
  • 1x SURECOM  SW-102-UV Power & SWR Meter  (N - connector)
  • 1x Power PSU 100-240V
  • 1x Charger Cable
  • 1x English Users Manual

1-Year Warranty

We offer a limited one-year warranty on all products (except Scratch Map Series , Car protective film, Apple watch screen protector and X2O Water Repellent Spray) at iMartCity.

For more information, please visit iMartCity Global Return and Refund Policy.

Delivery World Wide

We ship worldwide.

For more information, please visit iMartCity Global Shipping Policy.

Payment and Security

We accept the following major creadit card payment: Visa, American Express, MasterCard, FPS (FPS: 55880021) and PayPal. If you are located in Hong Kong, there are two more payment methords available. You can pay by PayMe from HSBC Hong Kong or by bank deposit in any branch of HSBC Hong Kong. Please note that currently we only accept HKD for PayMe, FPS and HSBC bank deposit payment. Transactions are encrypted with SSL security to ensure that your credit card information is 100% protected.
